ODM Polyurethane Polymeric Dispersing Agent Paint Dispersant BYK163

ODM Polyurethane Polymeric Dispersing Agent Paint Dispersant BYK163
Features Gallery Product Description Request A Quote
Active Ingredient: 40%
Category: Wetting & Dispersing Agent
Function: Improve Dispersion And Stability Of Pigments In Coatings And Inks
Solubility: Soluble In Water And Most Organic Solvents
Solvent: Xylene
Validity: 2 Years
Density: 1.02 G/ml (25℃)
High Light:

ODM Polymeric Dispersing Agent


BYK163 Polymeric Dispersing Agent


Polyurethane paint dispersant

Basic Infomation
Place of Origin: China
Brand Name: Anjeka
Certification: ISO9001-2015
Model Number: Anjeka6161A
Payment & Shipping Terms
Packaging Details: 25kg/drum
Delivery Time: 3-5days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100tons/month
Product Description

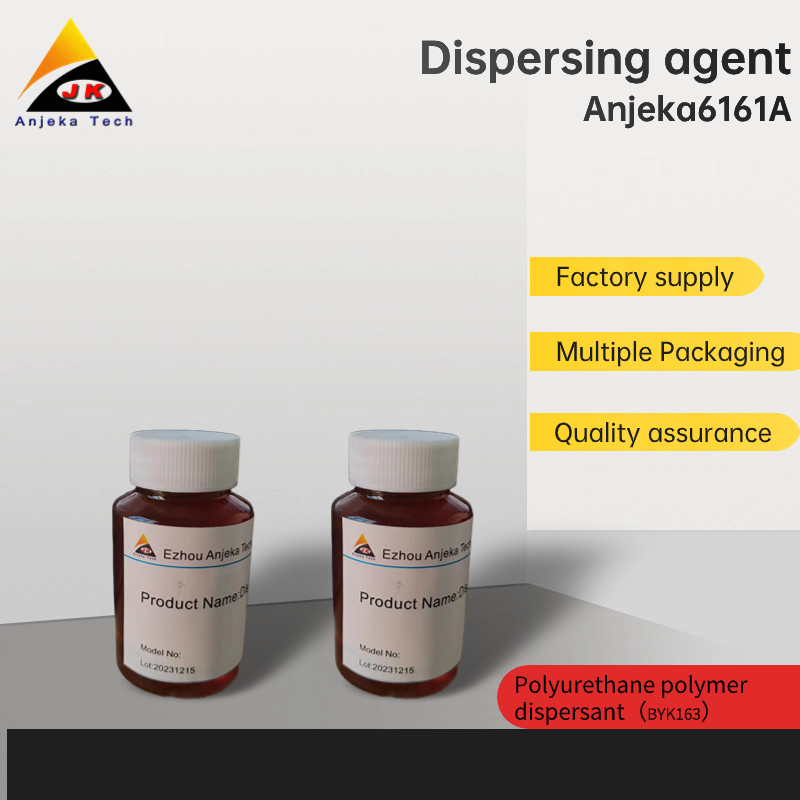

Polyurethane polymer dispersant t BYK163 for solvent-borne automotive and industrial coatings



Anjeka 6161A is a wetting and dispersing agent which is used for solvent-borne automotive and industrial coatings and pigment concentrates, especially suitable for stabilizing carbon blacks and organic pigments, particularly in two-pack PU and baking systems. Anjeka 6161A can significantly reduce the millbase viscosity.




Solution of polyurethane with pigment affinic groups.

Typical Properties

The values given in this data sheet describe the typical properties and do not constitute specification limits.

Amine value: 6-9 mg KOH/g
Density: 1.02 g/ml (25℃)
Viscosity: 380-420 cps (25℃)
Non-volatile matter (20min, 150℃): 40%
Solvent: xylene/methoxypropylacetate



Separation and turbidity may occur at temperatures below 0℃. Warm to 20℃ and mix well before use.



The surface-treatment of some organic pigments may negatively affect the efficiency of the additive. In such cases, tests with the untreated pigment of the same type may be successful. When used in coil coatings, the interaction of this cationic additive with the acid catalyst must be taken into account. Free acids or epoxy-blocked acids are more suitable than amine-blocked acids.



Industrial Coatings


Characters and advantages

Anjeka 6161A serves to disperse pigments effectively while ensuring their stability through the application of steric hindrance. This results in the creation of repulsion forces and steric stabilization, effectively warding off the risk of re-aggregation in the dispersed pigments. Consequently, the use of Anjeka 6161A prevents issues like floating and flooding in multi-pigment systems. Moreover, the additive's deflocculating characteristics contribute to heightened gloss, intensified color strength, improved transparency, and enhanced hiding power. Simultaneously, it works to decrease the viscosity of the millbase, streamlining the processing of the material.



Industrial coatings especially recommended

Automotive coating especially recommended

Protective coating systems recommended



The amount of additive (supplied form) is based on the pigment.

Titanium dioxide 5-6%

Inorganic pigments 10-15%

Organic pigments 30-80%

Carbon blacks 70-140%

The above recommended levels can be used for orientation. Optimal levels are determined through a series of laboratory tests.



For the best performance, the additive must be added into the millbase before addition of pigments. The resin and solvent components of the millbase are pre-mixed and then the additive is slowly incorporated while stirring continuously. Do not add the pigments until the additive has been fully distributed.



25KG Iron drum

180KG Plastic drum
